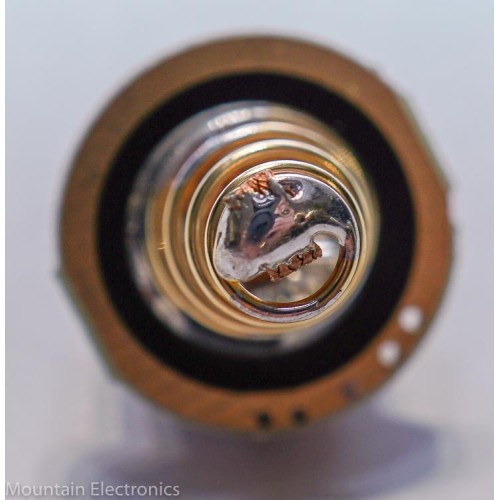

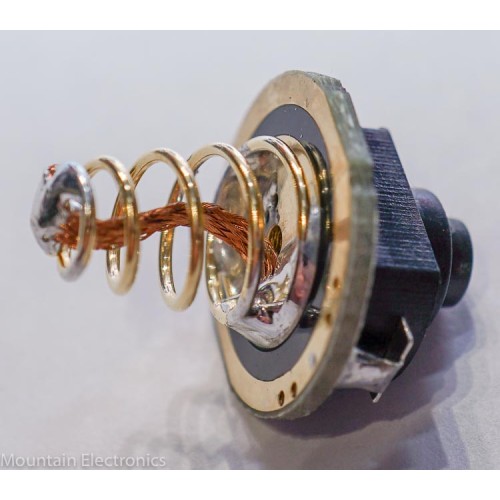

This 16mm switch asssembly has been pre-bypassed with quality copper braid for increased current handling and is ready to install in your light!

Specifications:

• 1288 Reverse Clicky Switch
• 16mm PCB
• Bypassed Spring for Increased Current Capability
• Dimensions:
  • Diameter:  ~16mm
  • Switch Height (measured from PCB):
    • Switch Body: 5mm
    • Switch Button Depressed:  7.6mm
    • Switch Button Not Depressed:  8mm
  • Spring Height (measured from PCB): 10.5mm

Compatability:

• Fits the Convoy C8, S2+, and S6.
• Fits the Jaxman E2L.
• May also fit other lights, but please check your dimensions to make sure.
